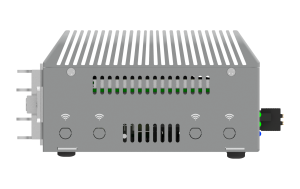

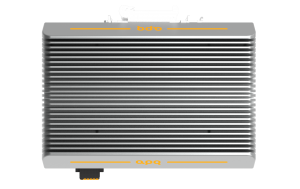

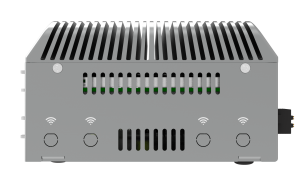

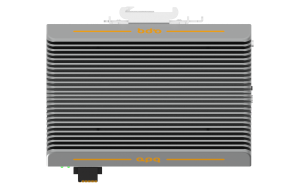

TAC-6000 具身機器人控制器/人形機器人控制器/AI駕駛控制器
遠程管理
狀態監控
遠程運維
安全控制
聯系我們
掃碼即可添加微信，售前客服為您提供咨詢服務
|
Model |
TAC-6010 |
TAC-6020 |
|
|
CPU |
CPU | Intel 8/11th?Generation Core? i3/i5/i7 Mobile -U CPU, TDP=15/28W | |
| ? | Chipset | SOC | |
|
BIOS |
BIOS | AMI UEFI BIOS | |
|
Memory |
Socket | 1 * DDR4-2400/2666/3200 MHz SO-DIMM Slot | |
| ? | Max Capacity | 32GB | |
|
Graphics |
Controller | Intel??UHD Graphics/Intel??Iris??Xe Graphics Note: Graphics controller type depend on CPU model |
|
|
Ethernet |
Controller | 1 * Intel??i210-AT (10/100/1000 Mbps, RJ45) 1 * Intel??i219 (10/100/1000 Mbps, RJ45) |
|
|
Storage |
M.2 | 1 * M.2 Key-M Slot (PCIe x4 NVMe/ SATA SSD, auto detect, 2242/2280) | |
|
Expansion Slots |
M.2 | 1 * M.2 Key-B Slot (USB2.0, Support 4G, 3042, only for 12V version) 1 * Mini PCIe Slot (PCIe+USB2.0, only for 12~24V version) |
|
| ? | Mini PCIe | 1 * Mini PCIe Slot (SATA/PCIe+USB2.0) | |
| ? | MXM/aDoor | N/A | 1 * MXM (support APQ MXM 4 * LAN/6 * COM/16 * GPIO expansion card) Note: 11th?CPU don't support MXM expansion 1 * aDoor Expansion I/O |
|

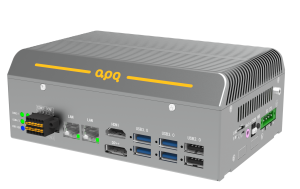

Front I/O |
USB | 4 * USB3.0 (Type-A) 2 * USB2.0 (Type-A) |
|
| ? | Ethernet | 2 * RJ45 | |
| ? | Display | 1 * DP: max resolution up to 3840*2160@24Hz 1 * HDMI (Type-A): max resolution up to 3840*2160@24Hz |
|
| ? | Serial | 4 * RS232/485 (COM1/2/3/4, jumper control) | 4 * RS232/485 (COM1/2/3/4/7/8, jumper control) 2 * RS232 (COM9/10) Note: 11th?CPU don't support COM7/8/9/10 |
|

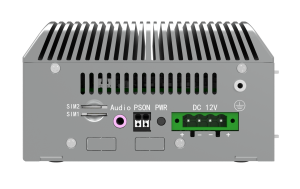

Right I/O |
SIM | 2 * Nano SIM Card Slot (Mini PCIe modules provide functional support) | |
| ? | Audio | 1 * 3.5mm Jack (Line-Out + MIC, CTIA) | |
| ? | Power | 1 * Power Button 1 * PS_ON 1 * DC Power Input |
|
|
Power Supply |
Type | DC | |
| ? | Power Input Voltage | 12~24VDC (optional 12VDC) | |
| ? | Connector | 1 * 4Pin Power Input Connector (P= 5.08mm) | |
| ? | RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10 | |
| ? | Linux | Linux | |
|
Watchdog |
Output | System Reset | |
| ? | Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | Radiator: Aluminum, Box: SGCC | |
| ? | Dimensions | 165mm(L) * 115mm(W) * 64.5mm(H) | 165mm(L) * 115mm(W) * 88.2mm(H) |
| ? | Weight | Net: 1.2kg, Total: 2.2kg | Net: 1.4kg, Total: 2.4kg |

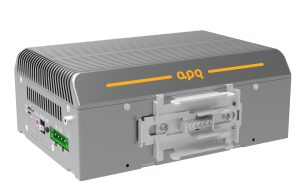

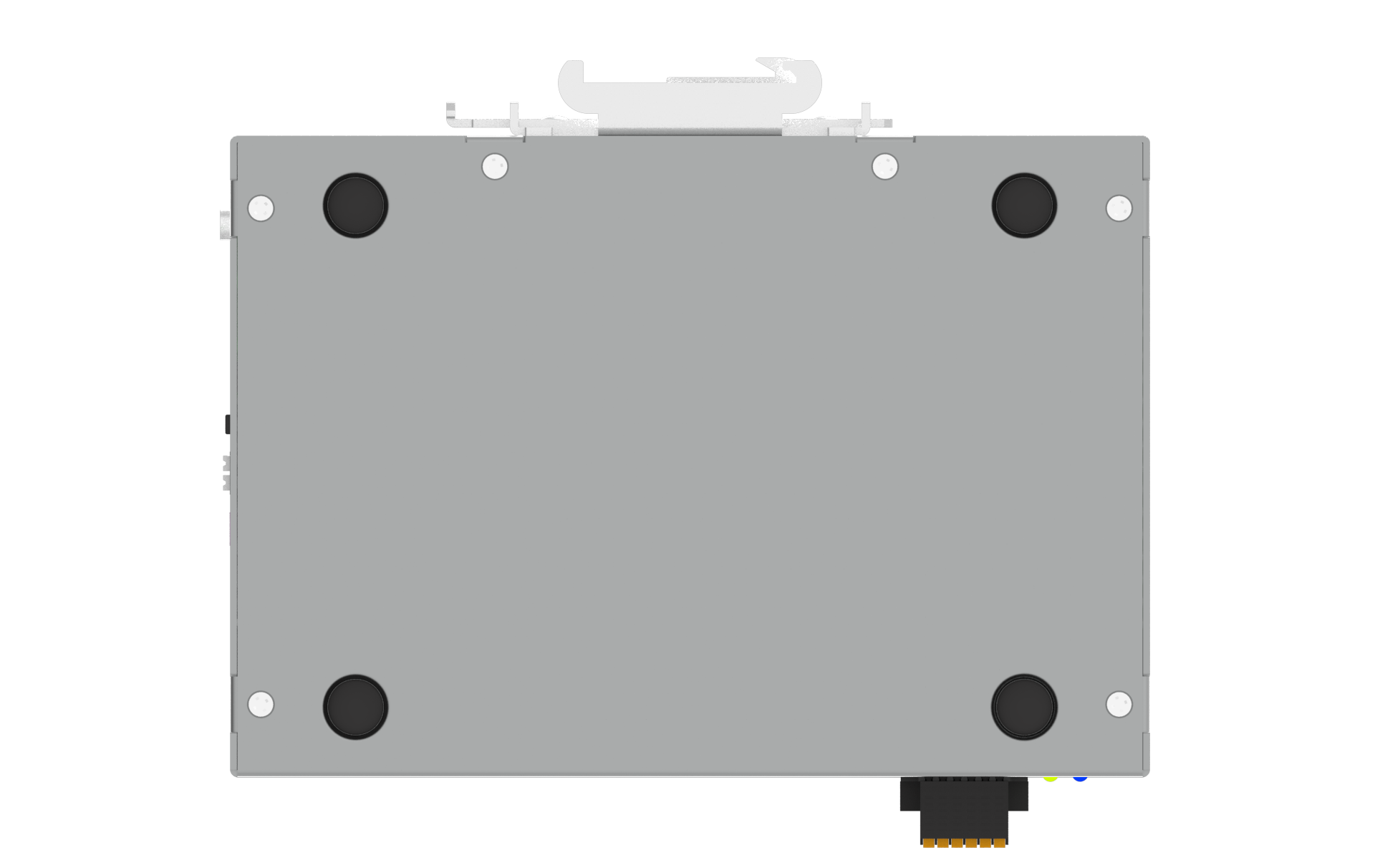

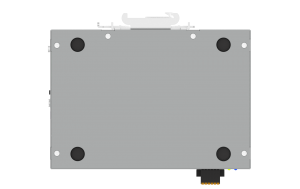

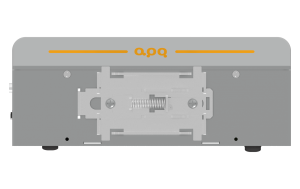

| ? | Mounting | DIN, Wallmount, Desk mounting | |
|
Environment |
Heat Dissipation System | Passive Heat Dissipation (8th?CPU) PWM Air Cooling (11th?CPU) |
|
| ? | Operating Temperature | -20~60℃? | |
| ? | Storage Temperature | -40~80℃ | |
| ? | Relative Humidity | 5 to 95% RH (non-condensing) | |
| ? | Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| ? | Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
| ? | Certification | CE | |
-
