產品描述

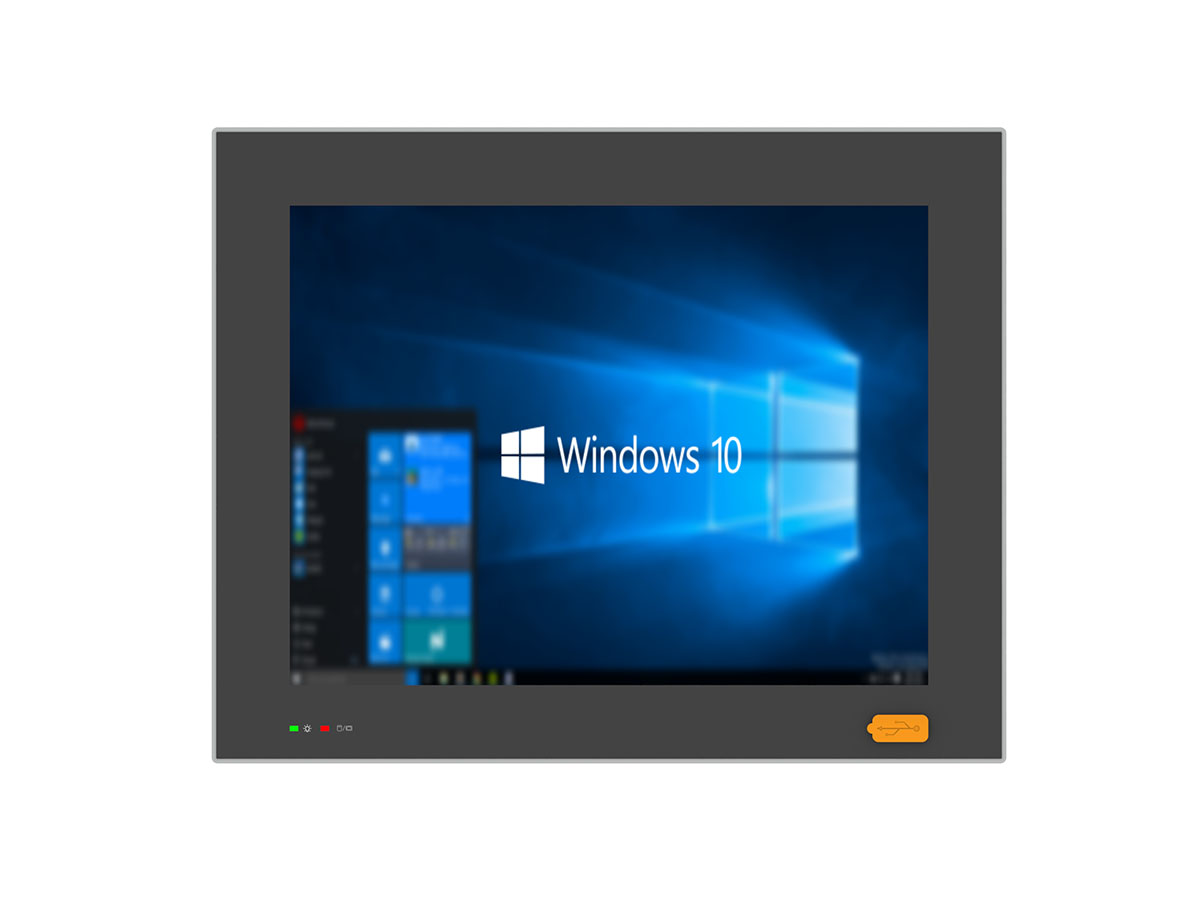

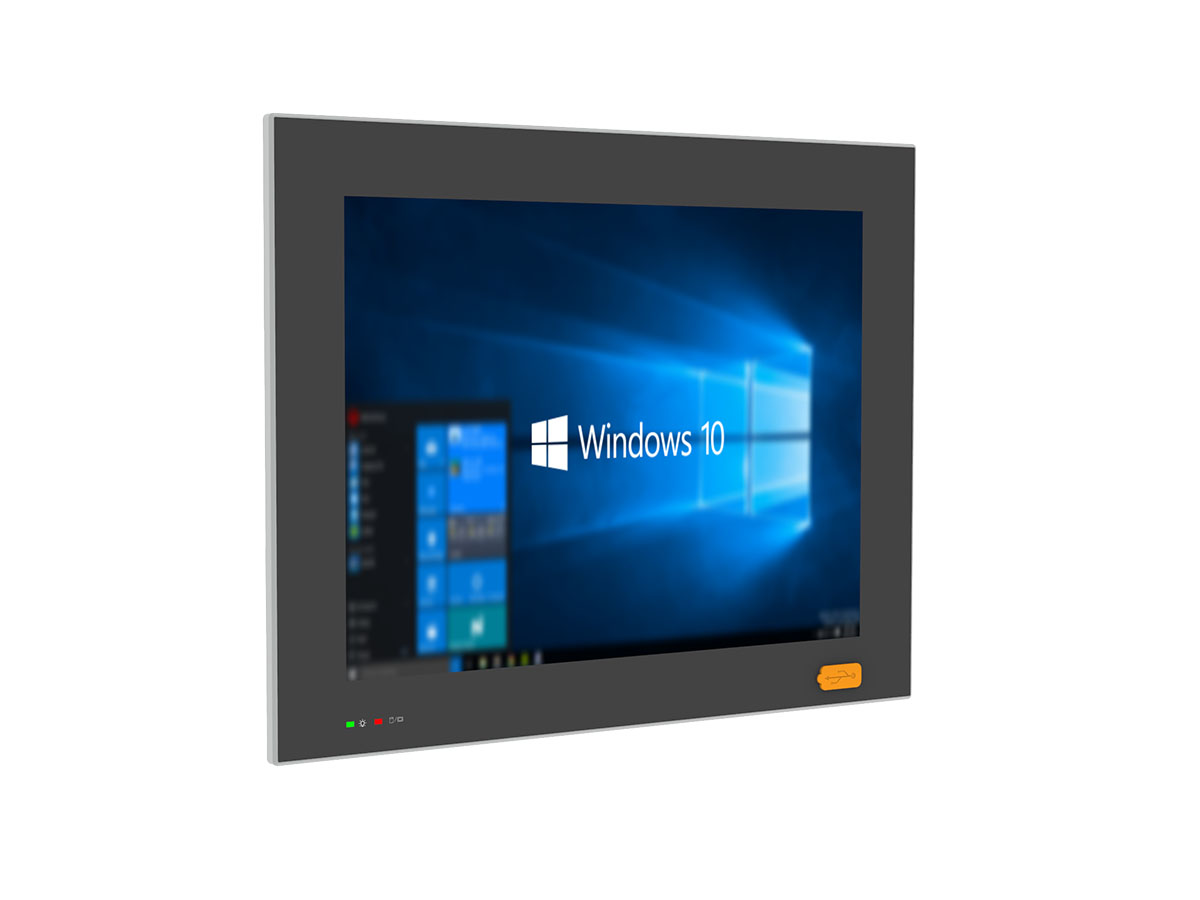

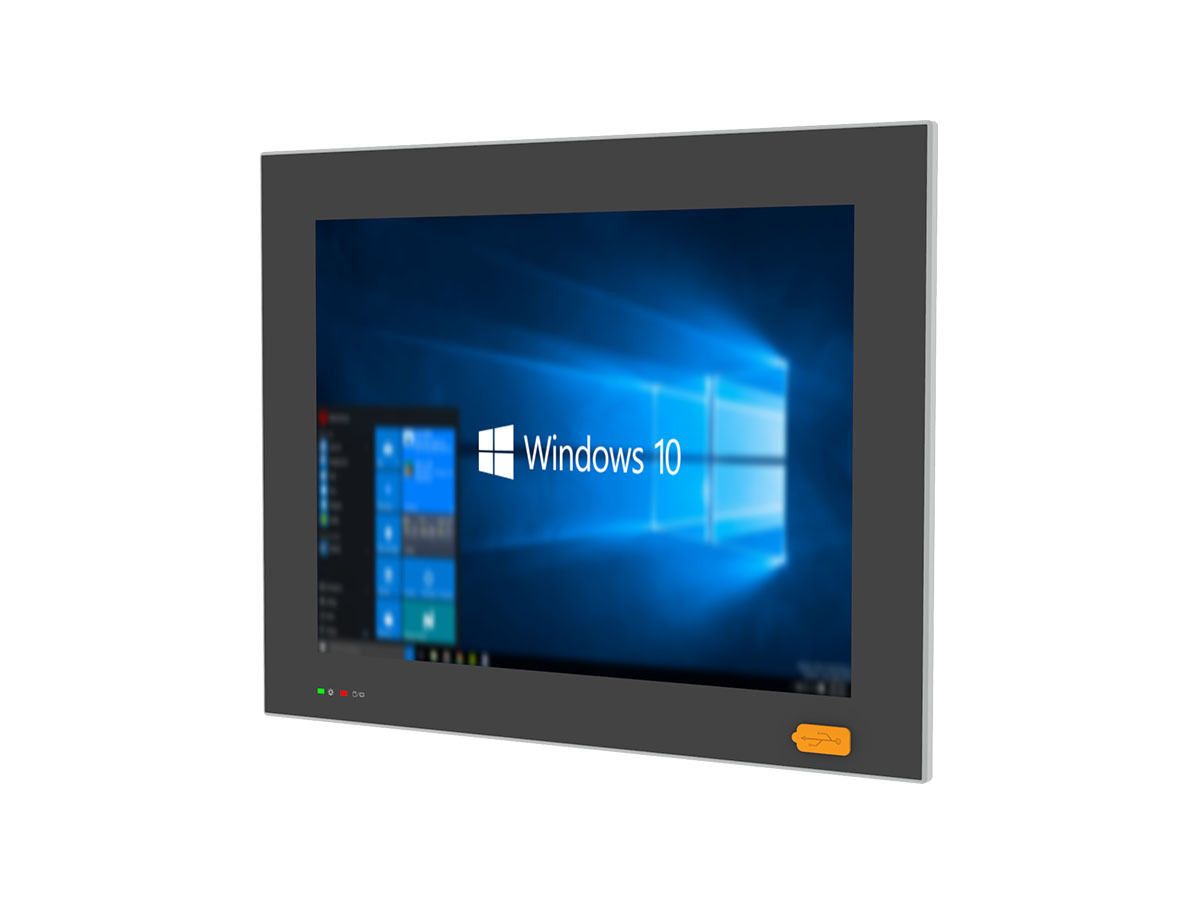

阿普奇全屏電阻觸摸屏工業一體機PLxxxRQ-E5系列是一款專為工業應用而設計的強大工業一體機。它采用全屏電阻觸摸屏技術，為用戶提供流暢、準確的觸控體驗，同時具備10.1~21.5″多種尺寸選擇，支持方屏/寬屏顯示，滿足不同行業標準和用戶需求。該產品還具備出色的防塵防水性能，前面板滿足IP65要求，能夠適應各種惡劣的工業環境。此外，它采用Intel? Celeron? J1900超低功耗CPU，保證高效性能和低能耗，集成雙Intel?千兆網卡，提供高速網絡連接和穩定的數據傳輸能力。該產品還支持雙硬盤存儲、APQ aDoor模塊擴展以及WiFi/4G無線擴展，具備多樣化的功能和擴展性。無風扇設計和嵌入式/VESA安裝方式使得該產品在運行時更加可靠和穩定，同時也方便集成到各種工業環境中。最后，該產品采用12~28V直流供電，適應廣泛的電源環境。
總之，阿普奇全屏電阻觸摸屏工業一體機PLxxxRQ-E5系列是工業自動化領域的理想選擇，能夠滿足各種需要大屏幕顯示、觸摸交互、強大數據處理能力和可靠性的應用場景。
|
Model |
PL101RQ-E5 | PL104RQ-E5 | PL121RQ-E5 | PL150RQ-E5 | PL156RQ-E5 | PL170RQ-E5 | PL185RQ-E5 | PL191RQ-E5 | PL215RQ-E5 | |
|
LCD |
Display Size | 10.1" | 10.4" | 12.1" | 15.0" | 15.6" | 17.0" | 18.5" | 19.0" | 21.5" |
| Display Type | WXGA TFT-LCD | XGA TFT-LCD | XGA TFT-LCD | XGA TFT-LCD | FHD TFT-LCD | SXGA TFT-LCD | WXGA TFT-LCD | WXGA TFT-LCD | FHD TFT-LCD | |
| Max.Resolution | 1280 x 800 | 1024 x 768 | 1024 x 768 | 1024 x 768 | 1920 x 1080 | 1280 x 1024 | 1366 x 768 | 1440 x 900 | 1920 x 1080 | |
| Luminance | 400 cd/m2 | 350 cd/m2 | 350 cd/m2 | 300 cd/m2 | 350 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 16:10 | 4:3 | 4:3 | 4:3 | 16:9 | 5:4 | 16:9 | 16:10 | 16:9 | |
| Viewing Angle | 89/89/89/89° | 88/88/88/88° | 80/80/80/80° | 88/88/88/88° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | |
| Max. Color | 16.7M | 16.2M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | |
| Backlight Lifetime | 20,000 hr | 50,000 hr | 30,000 hr | 70,000 hr | 50,000 hr | 30,000 hr | 30,000 hr | 30,000 hr | 50,000 hr | |
| Contrast Ratio | 800:1 | 1000:1 | 800:1 | 2000:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | |
|
Touchscreen |
Touch Type | 5-Wire Resistive Touch | ||||||||
| Controller | USB signal | |||||||||
| Input | Finger/Touch pen | |||||||||
| Light Transmission | ≥78% | |||||||||
| Hardness | ≥3H | |||||||||
| Click lifetime | 100gf, 10 million times | |||||||||
| Stroke lifetime | 100gf, 1 million times | |||||||||
| Response time | ≤15ms | |||||||||
|
?Processor System |
CPU | Intel??Celeron??J1900 | ||||||||
| Base Frequency | 2.00 GHz | |||||||||
| Max Turbo Frequency | 2.42 GHz | |||||||||
| Cache | 2MB | |||||||||
| Total Cores/Threads | 4/4 | |||||||||
| TDP | 10W | |||||||||
| Chipset | SOC | |||||||||
| BIOS | AMI UEFI BIOS | |||||||||
|
Memory |
Socket | DDR3L-1333 MHz (Onboard) | ||||||||
| Max Capacity | 4GB | |||||||||
|
Graphics |
Controller | Intel??HD Graphics | ||||||||
|
Ethernet |
Controller | 2 * Intel??i210-AT (10/100/1000 Mbps, RJ45) | ||||||||
|
Storage |
SATA | 1 * SATA2.0 Connector (2.5-inch hard disk with 15+7pin) | ||||||||
| mSATA | 1 * mSATA Slot | |||||||||
|
Expansion Slots |
aDoor | 1 * aDoor Expansion Module | ||||||||
| Mini PCIe | 1 * Mini PCIe Slot (PCIe 2.0x1 + USB2.0) | |||||||||
|

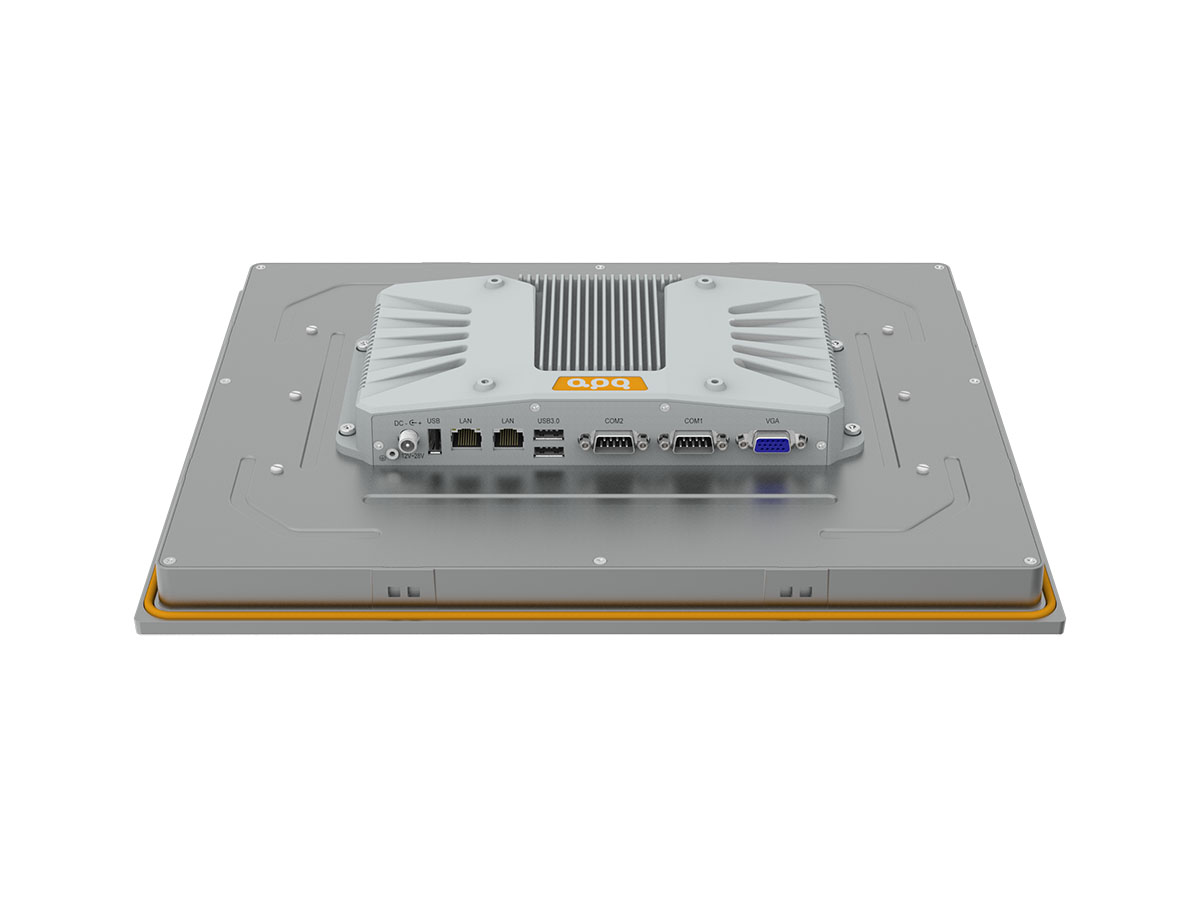

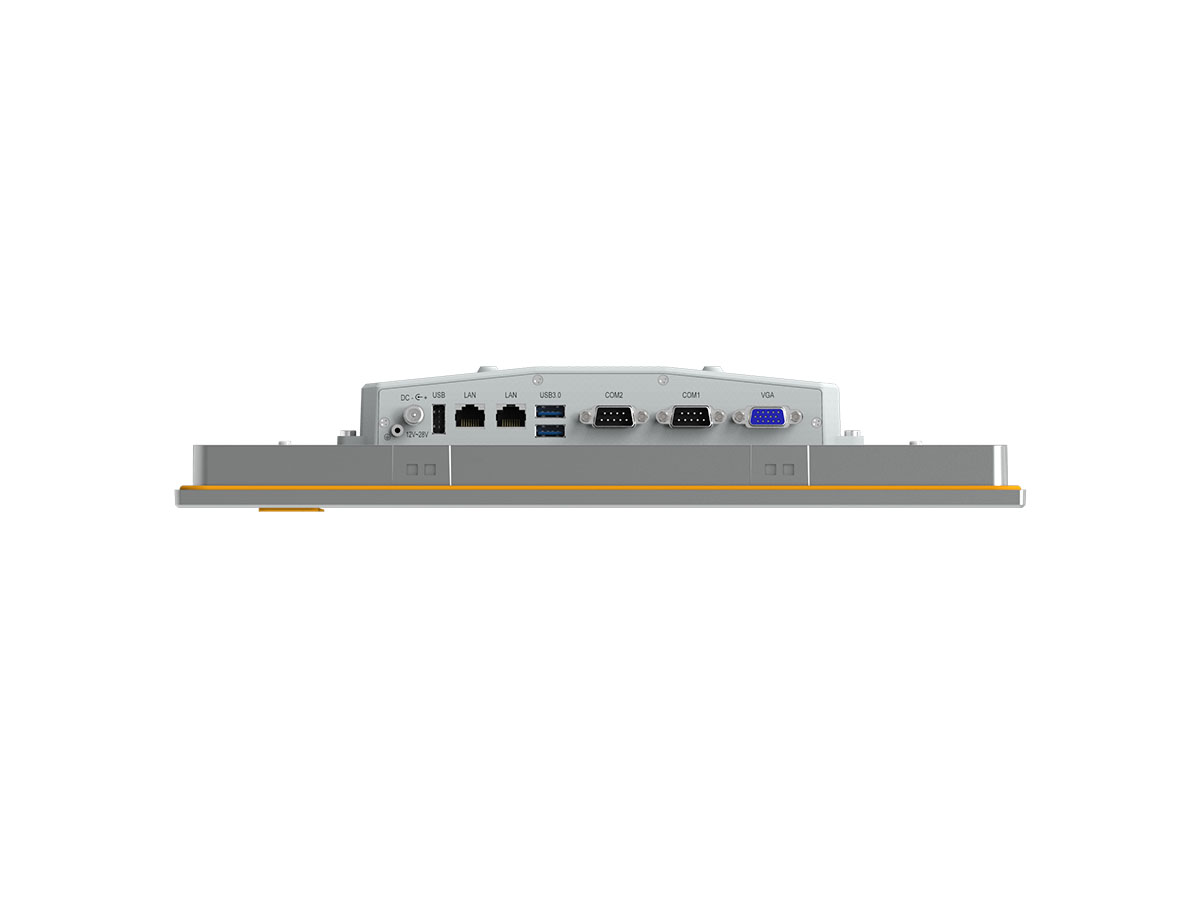

Front I/O |
USB | 2 * USB3.0 (Type-A) 1 * USB2.0 (Type-A) |
||||||||
| Ethernet | 2 * RJ45 | |||||||||
| Display | 1 * VGA: max resolution up to 1920*1200@60Hz | |||||||||
| Serial | 2 * RS232/485 (COM1/2, DB9/M) | |||||||||
| Power | 1 * Power Input Connector (12~28V) | |||||||||
|

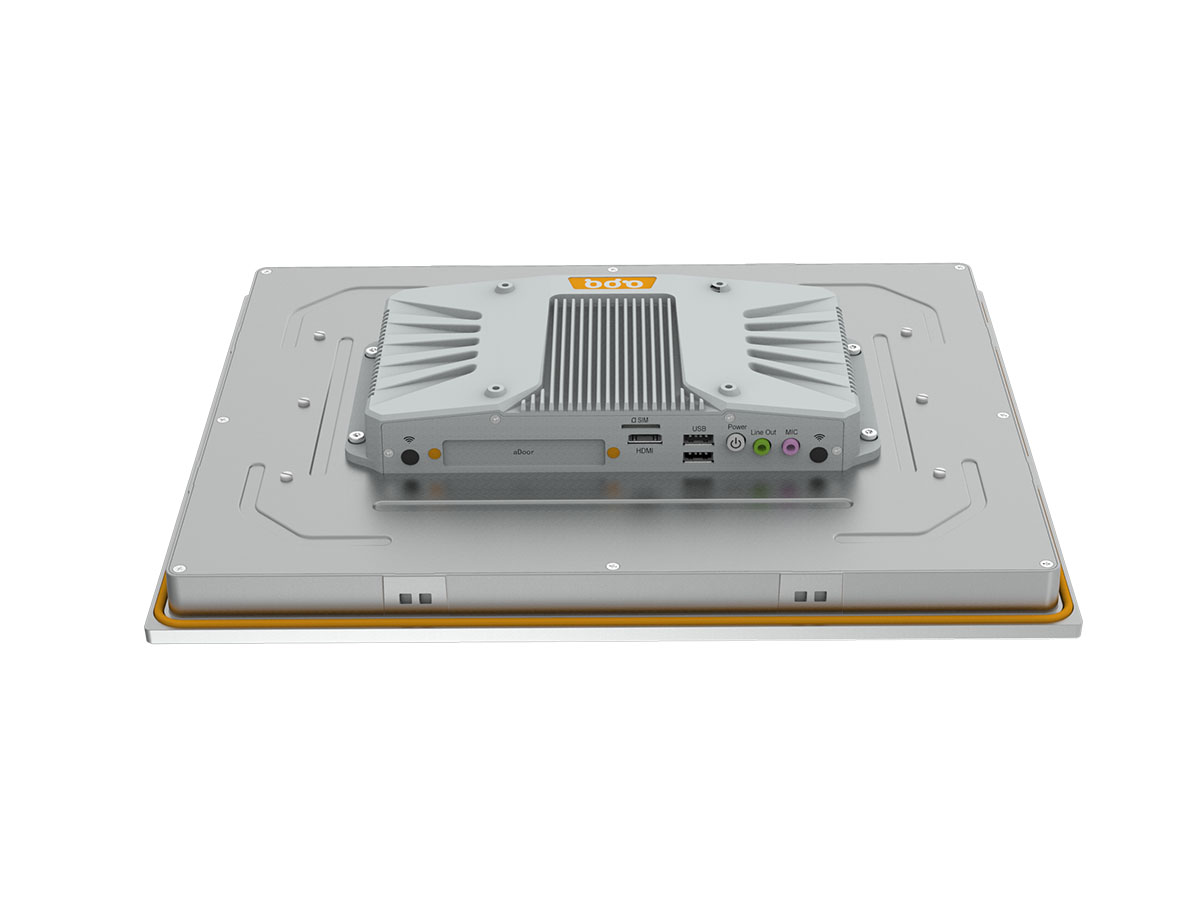

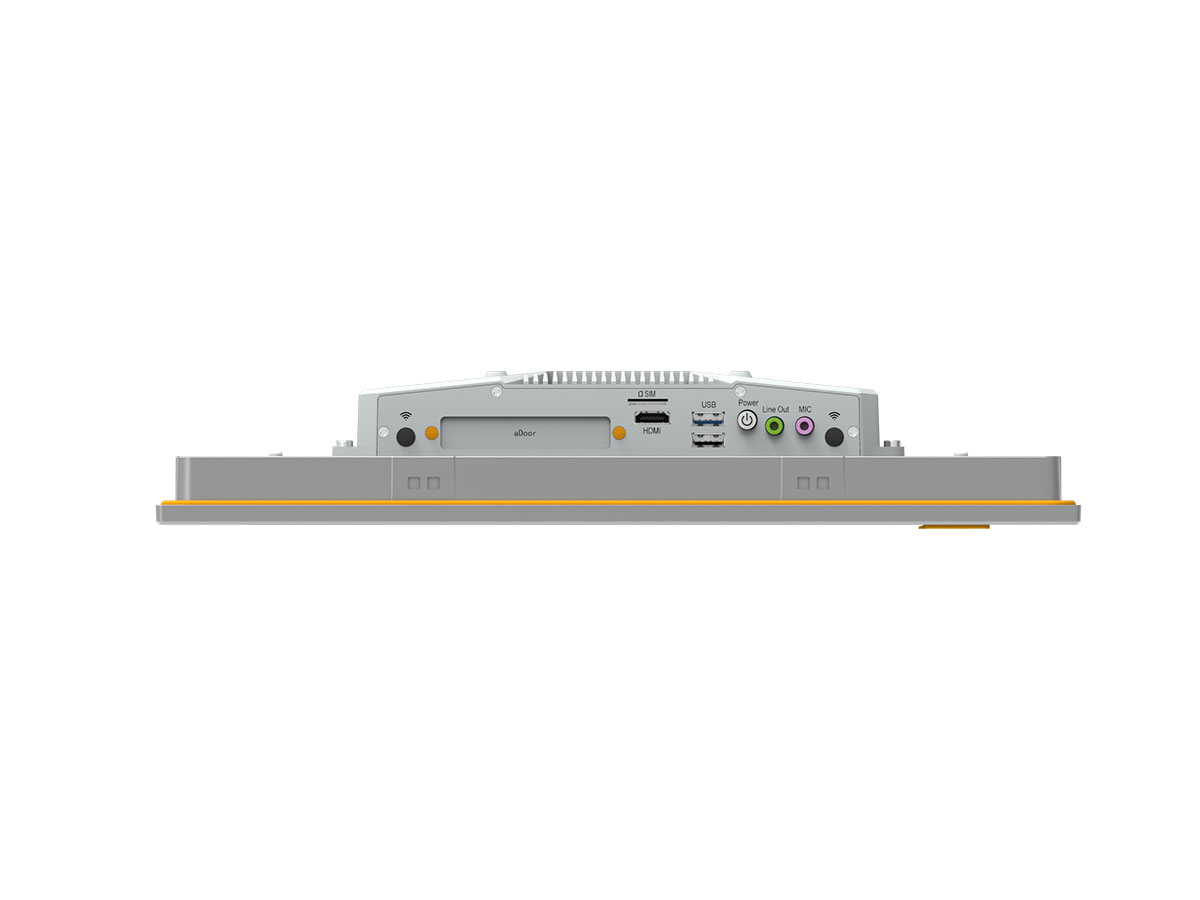

Rear I/O |
USB | 1 * USB3.0 (Type-A) 1 * USB2.0 (Type-A) |
||||||||
| SIM | 1 * SIM Card slot (Mini PCIe module provides functional support) | |||||||||
| Button | 1 * Power Button+Power LED | |||||||||
| Audio | 1 * 3.5mm Line-out Jack 1 * 3.5mm MIC Jack |
|||||||||
| Display | 1 * HDMI: max resolution up to 1920*1200 @ 60Hz | |||||||||
|
Internal I/O |
Front Panel | 1 * TFront Panel (3*USB2.0+Front Panel, 10x2Pin, PHD2.0) 1 * Front Panel (3x2Pin, PHD2.0) |
||||||||
| FAN | 1 * SYS FAN (4x1Pin, MX1.25) | |||||||||
| Serial | 2 * COM (JCOM3/4, 5x2Pin, PHD2.0) | |||||||||
| USB | 2 * USB2.0 (5x2Pin, PHD2.0) 1 * USB2.0 (4x1Pin, PH2.0) |
|||||||||
| Display | 1 * LVDS (20x2Pin, PHD2.0) | |||||||||
| Audio | 1 * Front Audio (header, Line-Out + MIC, 5x2Pin 2.00mm) 1 * Speaker (wafer, 2-W (per channel)/8-Ω Loads, 4x1Pin 2.0mm) |
|||||||||
| GPIO | 1 * 8bits DIO (4xDI and 4xDO, 10x1Pin MX1.25) | |||||||||
|
Power Supply |
Type | DC | ||||||||
| Power Input Voltage | 12~28VDC | |||||||||
| Connector | 1 * DC5525 with lock | |||||||||
| RTC Battery | CR2032 Coin Cell | |||||||||
|
OS Support |
Windows | Windows 7/8.1/10 | ||||||||
| Linux | Linux | |||||||||
|
Watchdog |
Output | System Reset | ||||||||
| Interval | Programmable 1 ~ 255 sec | |||||||||
|
Mechanical |
Enclosure Material | Radiator/Panel: Aluminum, Box/Cover: SGCC | ||||||||
| Mounting | VESA, embedded | |||||||||

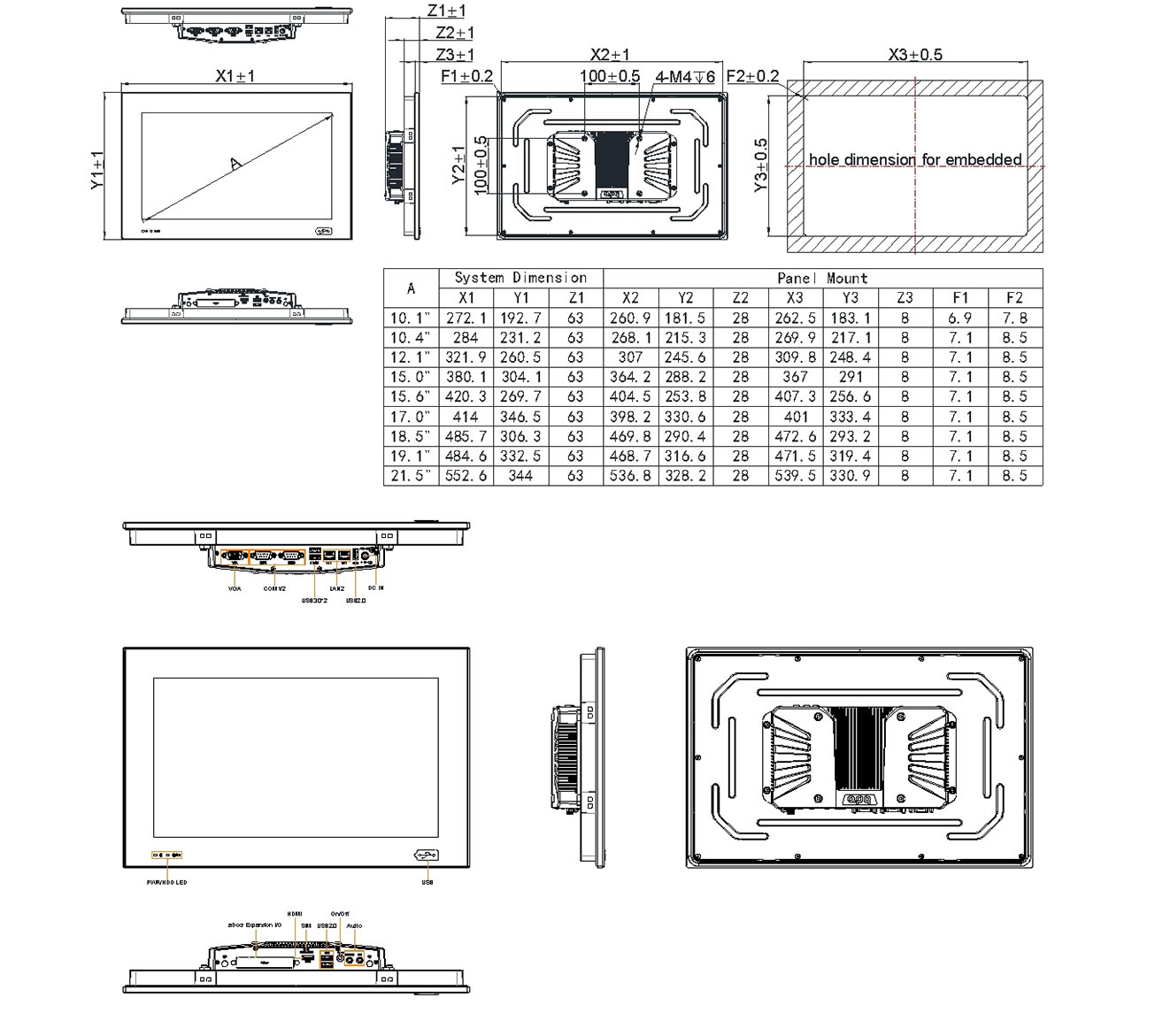

| Dimensions (L*W*H, Unit: mm) |
272.1*192.7 *63 | 284* 231.2 *63 | 321.9* 260.5*63 | 380.1* 304.1*63 | 420.3* 269.7*63 | 414* 346.5*63 | 485.7* 306.3*63 | 484.6* 332.5*63 | 552.6* 344*63 | |
| Weight | Net: 2.7Kg,
Total: 4.9Kg |
Net: 2.8Kg,
Total: 5.1Kg |
Net: 3.0Kg,
Total: 5.4Kg |
Net: 4.4Kg,
Total: 6.9Kg |
Net: 4.3Kg,
Total: 6.8Kg |
Net: 5.2Kg,
Total: 7.8Kg |
Net: 5.1Kg,
Total: 7.8Kg |
Net: 5.7Kg,
Total: 8.6Kg |
Net: 6.0Kg,
Total: 8.9Kg |
|
|
Environment |
Heat Dissipation System | Passive heat dissipation | ||||||||
| Operating Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | 0~50℃ | 0~50℃ | 0~50℃ | 0~60℃ | |
| Storage Temperature | -20~60℃ | -20~70℃ | -30~80℃ | -30~70℃ | -30~70℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |||||||||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | |||||||||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | |||||||||
-
