產品描述

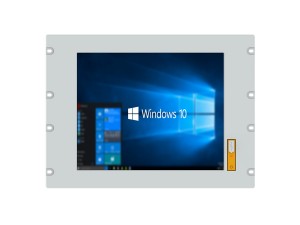

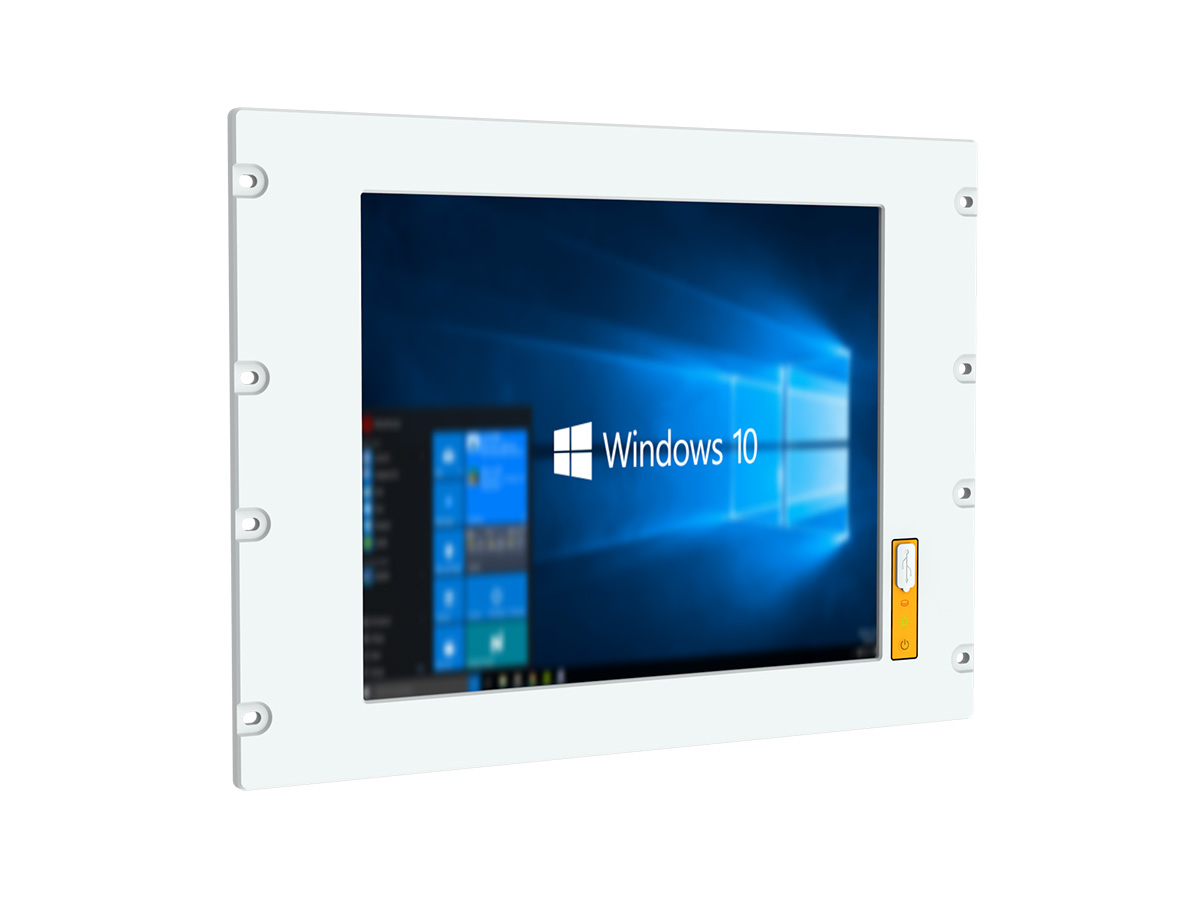

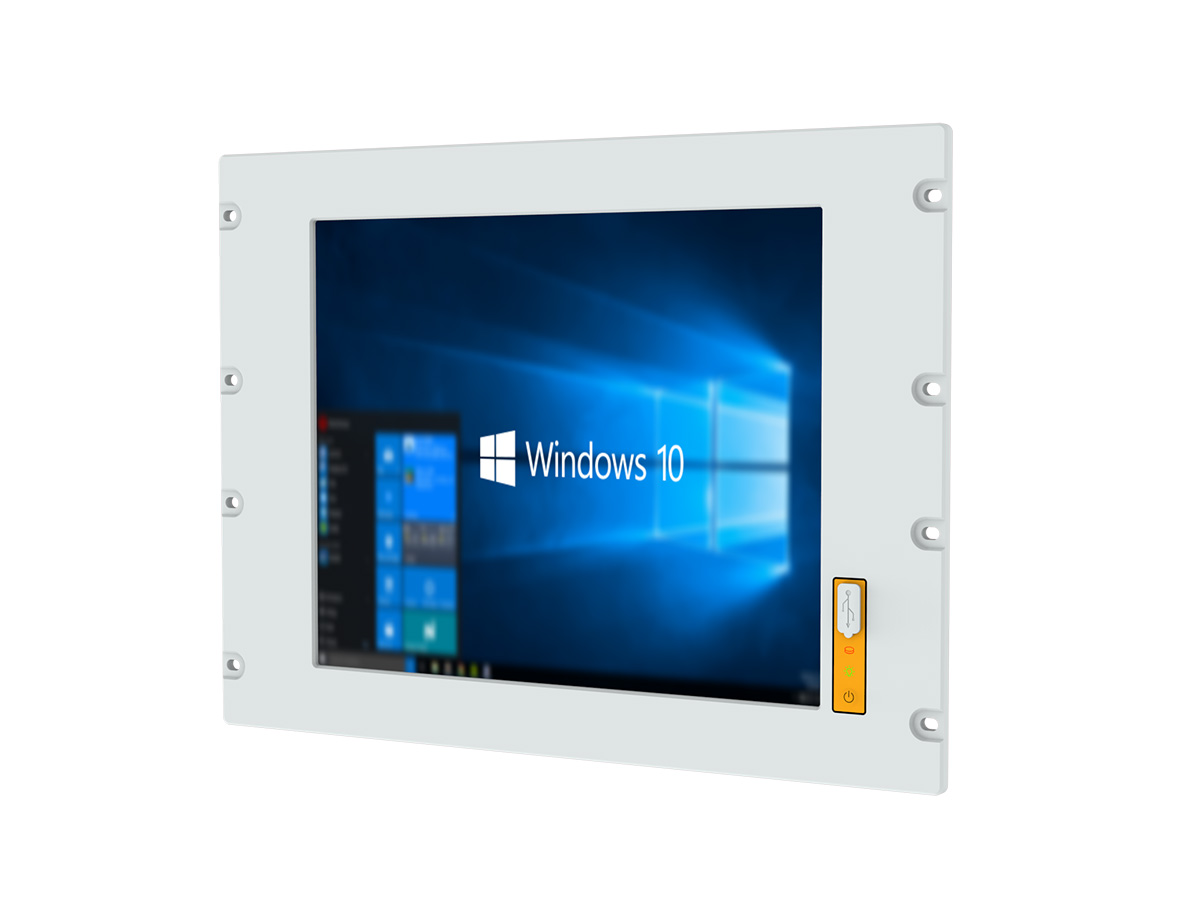

阿普奇電阻式觸摸屏工業一體機PGxxxRF-E5S系列是一款高性能的工業一體機，采用電阻式觸摸屏設計，具有模塊化設計，可選配17/19英寸屏幕，支持方形屏幕和寬屏顯示。前面板符合IP65防護等級要求，可在惡劣環境下穩定運行。前面板集成USB Type-A接口和信號指示器，便于用戶操作和監控。采用Intel J6412/N97/N305低功耗CPU，集成雙英特爾?千兆網絡卡，支持雙硬盤存儲，可擴展APQ aDoor模塊和WiFi/4G無線擴展。同時采用無風扇設計，保證了靜音運行和穩定性能。支架安裝或VESA安裝方式，可滿足不同場合的安裝需求。12~28V直流供電設計，適用于不同的工業場景。
阿普奇電阻式觸摸屏工業一體機PGxxxRF-E5S系列是工業領域的理想選擇。
|
Model |
PG170RF-E5S |
PG190RF-E5S |
|||
|
LCD |
Display Size | 17.0" | 19.0" | ||
| Max.Resolution | 1280 x 1024 | 1280 x 1024 | |||
| Luminance | 250 cd/m2 | 250 cd/m2 | |||
| Aspect Ratio | 5:4 | 5:4 | |||
| Viewing Angle | 85/85/80/80° | 85/85/80/80° | |||
| Max. Color | 16.7M | 16.7M | |||
| Backlight Lifetime | 30,000 hr | 30,000 hr | |||
| Contrast Ratio | 1000:1 | 1000:1 | |||
|
Touchscreen |
Touch Type | 5-wire resistive touch | |||
| Controller | USB signal | ||||
| Input | Finger/Touch pen | ||||
| Light Transmission | ≥78% | ||||
| Hardness | ≥3H | ||||
| Click lifetime | 100gf, 10 million times | ||||
| Stroke lifetime | 100gf, 1 million times | ||||
| Response time | ≤15ms | ||||
|
?Processor System |
CPU | Intel??Elkhart Lake J6412 | Intel??Alder Lake N97 | Intel??Alder Lake N305 | |
| Base Frequency | 2.00 GHz | 2.0 GHz | 1 GHz | ||
| Max Turbo Frequency | 2.60 GHz | 3.60 GHz | 3.8GHz | ||
| Cache | 1.5MB | 6MB | 6MB | ||
| Total Cores/Threads | 4/4 | 4/4 | 8/8 | ||
| Chipset | SOC | ||||
| BIOS | AMI UEFI BIOS | ||||
|
Memory |
Socket | 1 * DDR4-SODIMM, up to 3200Mhz | |||
| Capacity | Max. 32GB | ||||
|
Graphics |
Controller | Intel??UHD Graphics | |||
|
Ethernet |
Controller | 2 * Intel??i210-AT (10/100/1000 Mbps, RJ45) | |||
|
Storage |
SATA | 1 * SATA3.0 Connector (2.5-inch hard disk with 15+7Pin) | |||
| M.2 | 1 * M.2 Key-M Slot (SATA SSD, 2280) | ||||
|
Expansion Slots |
aDoor | 1 * aDoor | |||
| Mini PCIe | 1 * Mini PCIe Slot (PCIe+USB2.0) | ||||
|

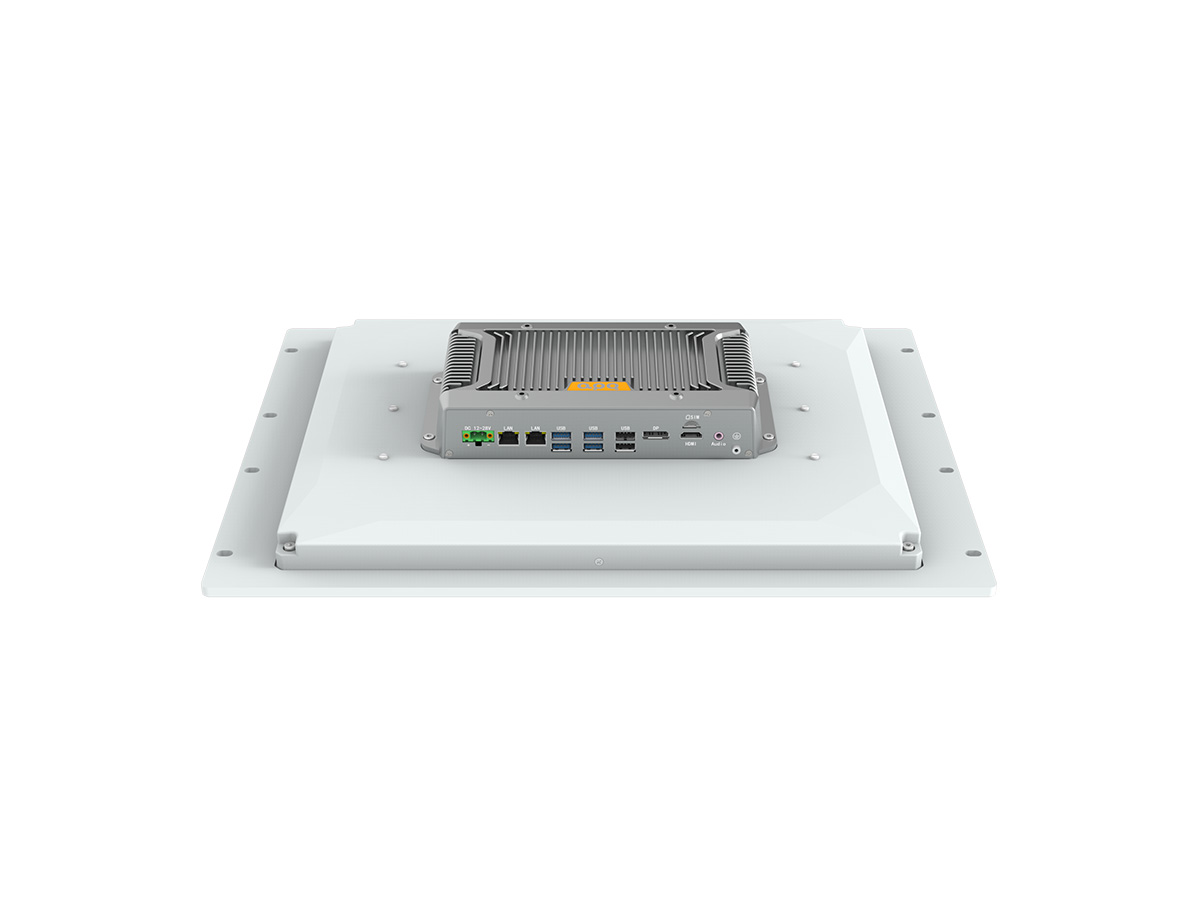

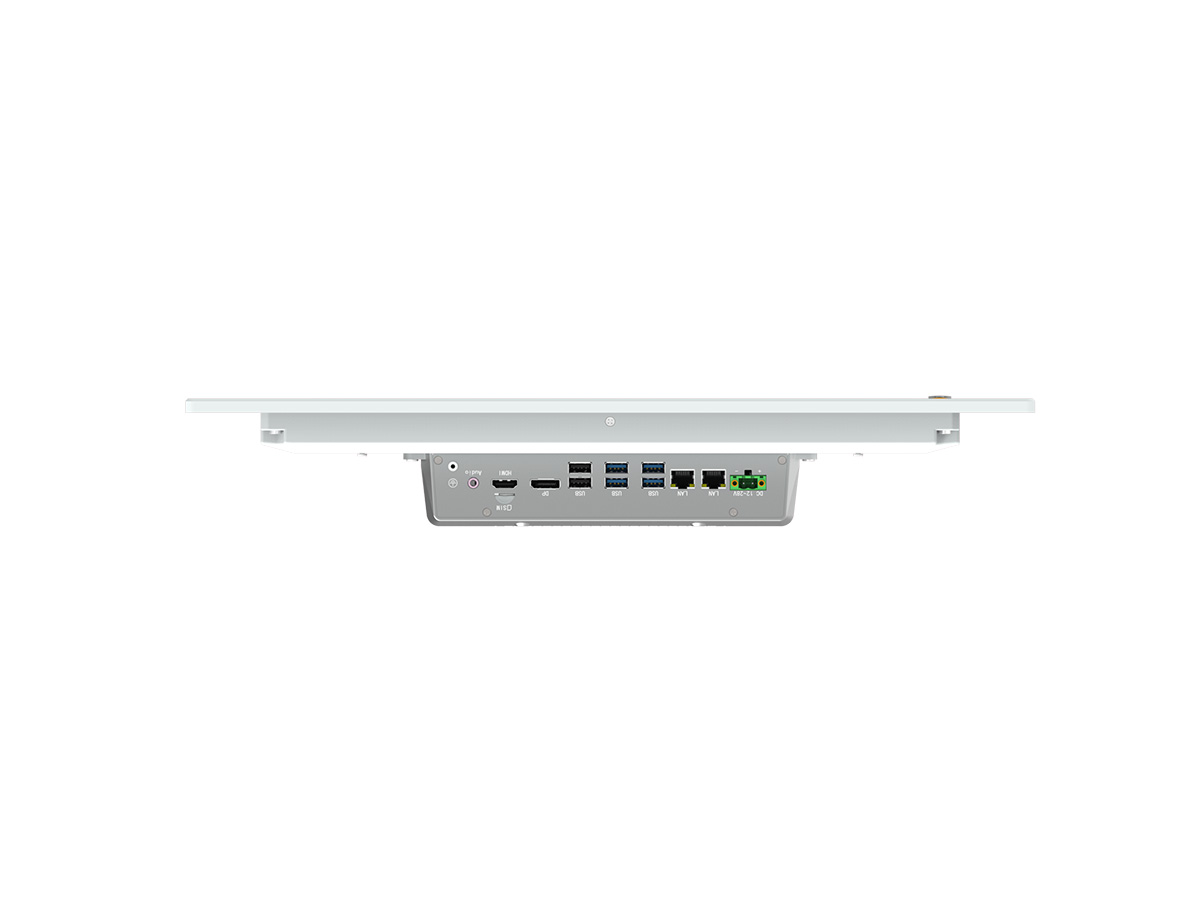

Front I/O |
USB | 4 * USB3.0 (Type-A) 2 * USB2.0 (Type-A) |
|||
| Ethernet | 2 * RJ45 | ||||
| Display | 1 * DP++: max resolution up to 4096x2160@60Hz 1 * HDMI (Type-A): max resolution up to 2048x1080@60Hz |
||||
| Audio | 1 * 3.5mm Jack (Line-Out + MIC, CTIA) | ||||
| SIM | 1 * Nano-SIM Card slot (Mini PCIe module provides functional support) | ||||
| Power | 1 * Power Input Connector (12~28V) | ||||
|

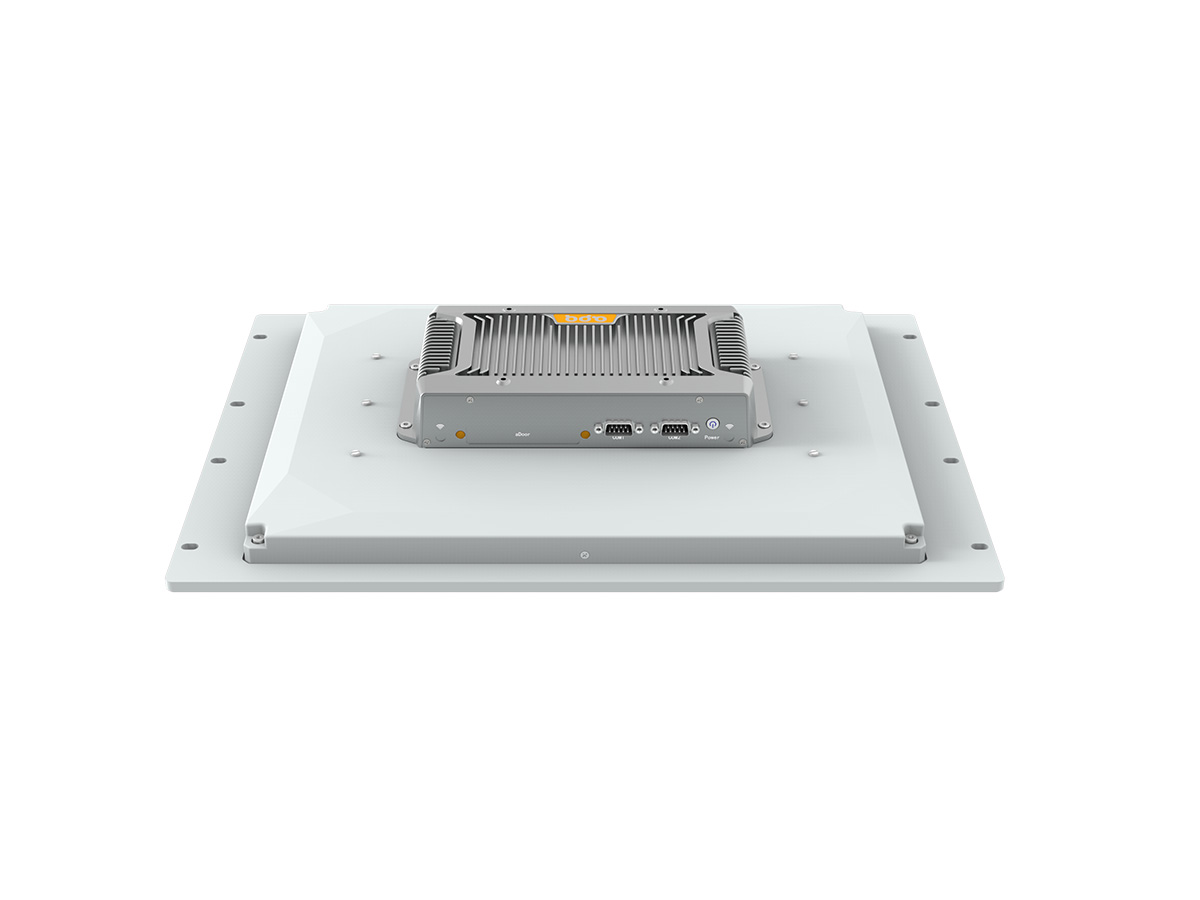

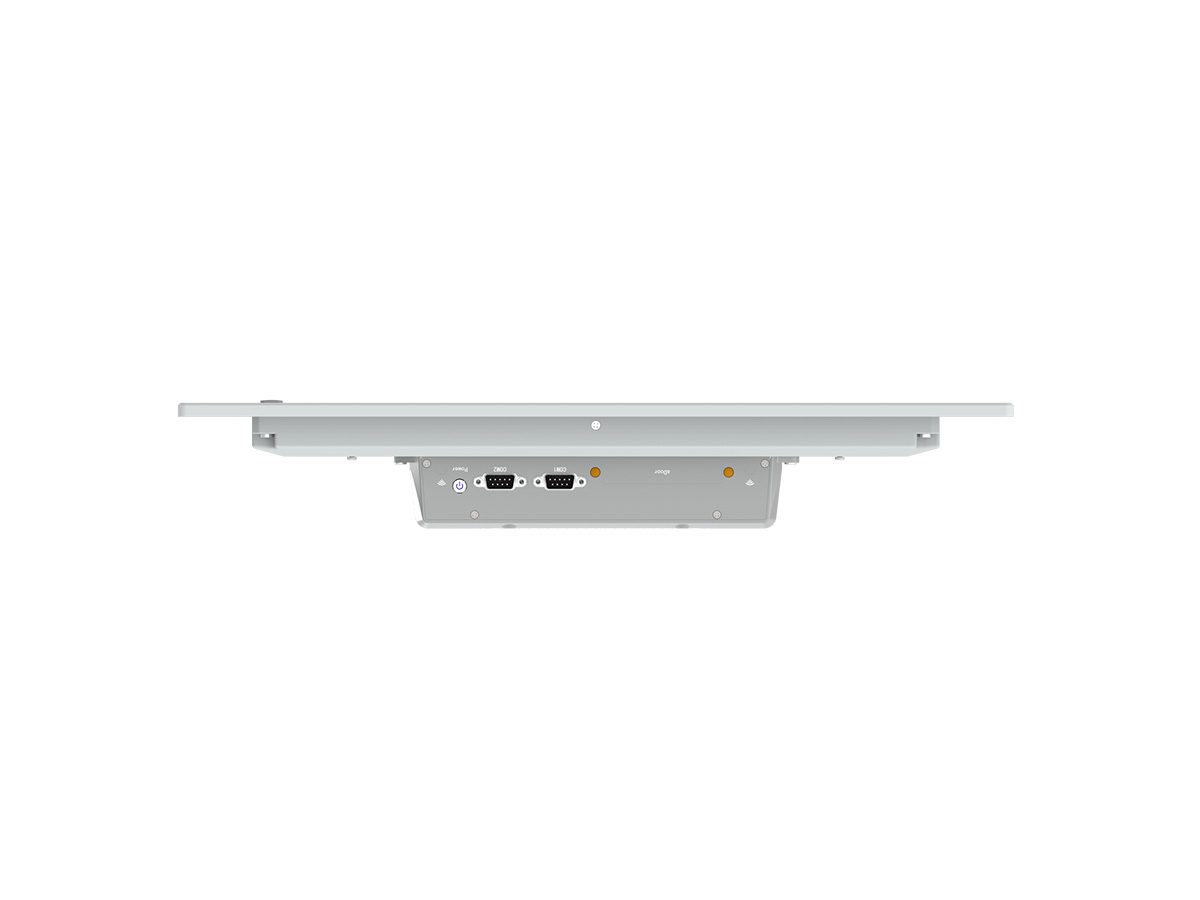

Rear I/O |
Button | 1 * Power Button with Power LED | |||
| Serial | 2 * RS232/485 (COM1/2, DB9/M, BIOS control) | ||||
|
Internal I/O |
Front Panel | 1 * Front Panel (3x2Pin, PHD2.0) | |||
| FAN | 1 * SYS FAN (4x1Pin, MX1.25) | ||||
| Serial | 2 * COM (JCOM3/4, 5x2Pin, PHD2.0) 2 * COM (JCOM5/6, 5x2Pin, PHD2.0) |
||||
| USB | 2 * USB2.0 (F_USB2_TP, 5x2Pin, PHD2.0) 2 * USB2.0 (F_USB2_1, 5x2Pin, PHD2.0) |
||||
| Display | 1 * LVDS/eDP (default LVDS, wafer, 25x2Pin 1.00mm) | ||||
| Audio | 1 * Speaker (2-W (per channel)/8-Ω?Loads, 4x1Pin, PH2.0) | ||||
| GPIO | 1 * 16bits DIO (8xDI and 8xDO, 10x2Pin, PHD2.0) | ||||
| LPC | 1 * LPC (8x2Pin, PHD2.0) | ||||
|
Power Supply |
Type | DC | |||
| Power Input Voltage | 12~28VDC | ||||
| Connector | 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) | ||||
| RTC Battery | CR2032 Coin Cell | ||||
|
OS Support |
Windows | Windows 10/11 | |||
| Linux | Linux | ||||
|
Watchdog |
Output | System Reset | |||
| Interval | Programmable 1 ~ 255 sec | ||||
|
Mechanical |
Enclosure Material | Radiator/Panel: Aluminum, Box/Cover: SGCC | |||
| Mounting | Rack-mount, VESA, embedded | ||||

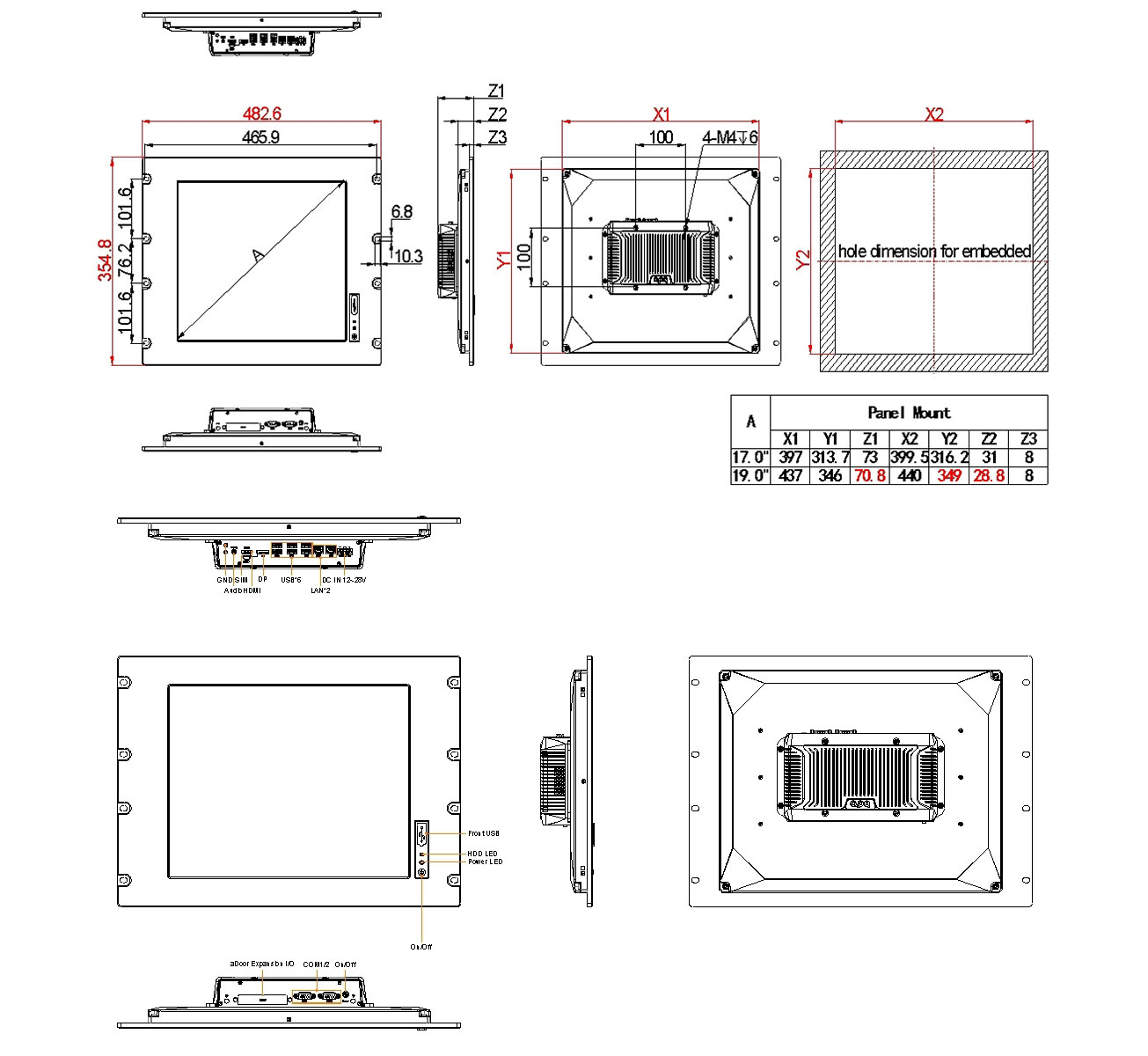

| Dimensions | 482.6mm(L) * 354.8mm(W) *73mm(H) | 482.6mm(L) * 354.8mm(W) *70.8mm(H) | |||
| Weight | Net: 5.7kg, Total: 8.7kg | Net: 7.1kg, Total: 10.3kg | |||
|
Environment |
Heat Dissipation System | Passive heat dissipation | |||
| Operating Temperature | 0~50℃ | ||||
| Storage Temperature | -20~60℃ | ||||
| Relative Humidity | 10 to 95% RH (non-condensing) | ||||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||||
-
PGE5S系列J6412平臺 工業一體機/工業平板電腦
